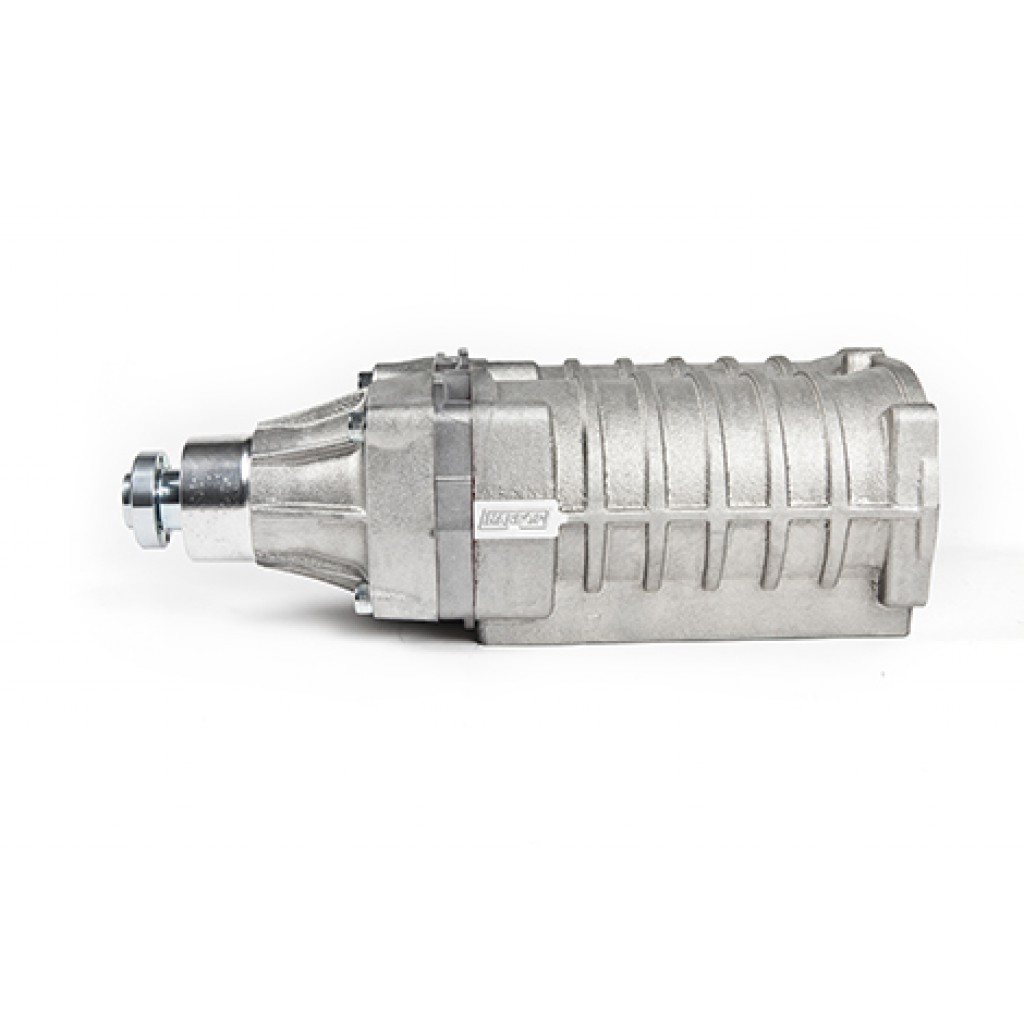

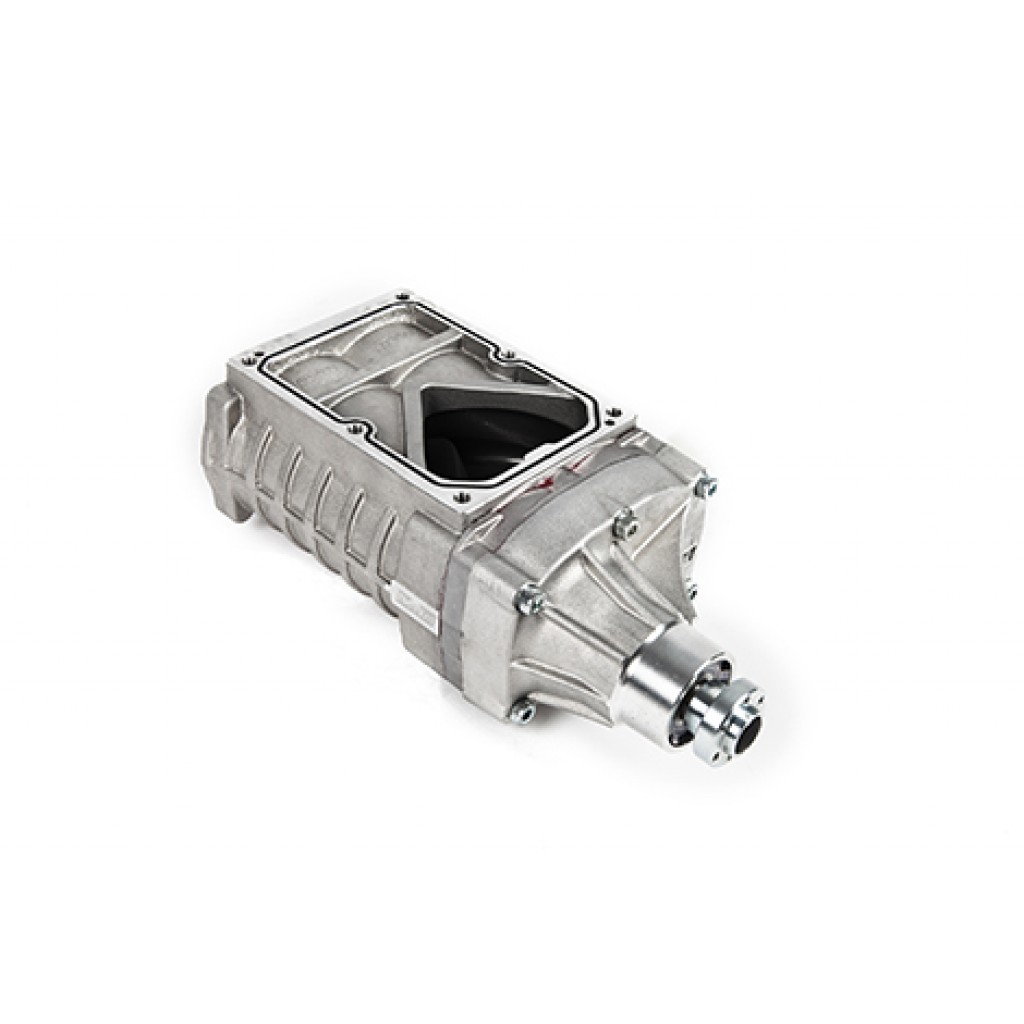

HTV900 Supercharger
Available Options
The Harrop HTV (Harrop Twin Vortices) supercharger system is a Roots-type supercharger manufactured utilising the latest Eaton TVS ™ rotating assembly. Built for a variety of engine configurations and high performance applications they deliver more power and efficiency for uncompromising high performance driving.
The Harrop HTV supercharger's design features patented four-lobe rotors with high-flow inlet and outlet ports that greatly enhance thermal efficiency, delivering higher volumetric capacity, and enable higher operating speeds. The HTV supercharger is capable of running with a high efficiency across a very wide operating range. The four-lobe rotors feature 160-degree twists, the higher helix angle of the rotors coupled with redesigned inlet and outlet ports, improve the HTV's air-handling characteristics without increasing the overall size of the unit.
The new Harrop HTV sets a new standard of supercharger performance and reaffirms Harrop and Eaton's leadership in the performance automotive market.
Key Features
- Greater volumetric efficiency enables the rotating group to flow more air per revolution
- larger intake area which creates less turbulence and allows more air into the rotor ports
- Superior design creates less heat which equates to greater power levels
- High-Flow inlet and outlet ports that greatly enhance overall efficiency
- Less parasitic loss which takes less power to drive
- Quiet operation with a stealth appearance
- Thermal efficiency that exceeds 70%
- A 2.4 pressure ratio capability
- 900 cc/rev - 55 ci/rev Clockwise rotational direction
- Face-mount style
Available Options
- Horizontal or vertical bypass actuator fitment options
- Non bypass actuator models available
- Two front cover drive lengths options
- Multiple drive pulley size options
